Choose Your Solution

Three product families — conditioners & UPS

From compact power conditioners for benchtop instruments to true online double-conversion UPS systems for mission-critical analytical platforms — the Integrity Series has a solution for every laboratory power requirement.

⚡

Integrity Standard

Compact power conditioners with isolation transformer, surge diverter, and noise filter. Ideal for benchtop instruments, ATMs, point-of-sale systems, and microprocessor-based devices.

3 tiers · 80–2000 VA · 120 VAC

🔌

Integrity Single-Phase

Higher-capacity power conditioners for mass spectrometers, analytical instrumentation, semiconductor equipment, and mid-range computer systems. 208/240 VAC input with dual-voltage output.

12 models · 2–7 kVA · 208/240 VAC

💻

Integrity Max UPS

True online double-conversion UPS with battery backup. Handles high inrush current and high crest factor loads. Custom output receptacle panels available for fast onsite setup.

7 models · 2.2–10 kVA · 200–240 VAC

Power Conditioners · 80–2000 VA

Integrity Standard Series

Built-in surge diverter, low-impedance isolation transformer, and noise filter protect microprocessor-based equipment from electrical noise, spikes, and transients. Let-through voltage less than 10 volts normal mode and less than 0.5 volts neutral-to-ground (ANSI/IEEE C62.41). NXT GROUND technology eliminates ground loops that cause system lock-ups. 5-year warranty on all models.

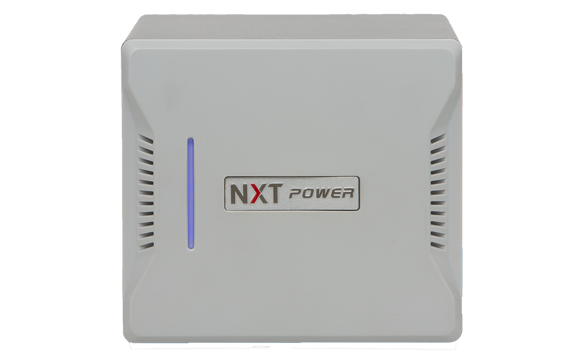

80–480 VA

Integrity Standard 80–480 VA

Up to 480 VA

Power Range80–480 VA
Input Voltage120 VAC / 200–240 VAC
Frequency50/60 Hz
Let-Through<10V normal mode
CertificationUL Listed

Ideal for analyzers, small instrumentation, ATMs, point-of-sale systems, and other low-voltage microprocessor-based electronics. NXT GROUND integrated within each unit.

600–1000 VA

Integrity Standard 600–1000 VA

Up to 1000 VA

Power Range600–1000 VA
Input Voltage120 VAC / 200–240 VAC
Frequency50/60 Hz
Let-Through<10V normal mode
CertificationUL Listed

Perfect for benchtop diagnostic systems, simulators, and mid-power laboratory instruments requiring clean, conditioned power up to 1000 VA.

1200–2000 VA

Integrity Standard 1200–2000 VA

Up to 2000 VA

Power Range1200–2000 VA
Input Voltage120 VAC / 200–240 VAC
Frequency50/60 Hz
Let-Through<10V normal mode
CertificationUL Listed

Designed for imaging instrumentation, clinical diagnostics, sophisticated computer loads, and laboratory systems requiring up to 2000 VA of fully conditioned power.

Power Conditioners · 2–7 kVA

Integrity Single-Phase Power Conditioners

Designed for analytical instrumentation, mass spectrometers, semiconductor process equipment, and other critical systems requiring 208/240 VAC input with 208/240/120 VAC output. Low-impedance isolation transformer provides clean power for loads up to 29 amps. Hardwired and plug/receptacle models available. Case size: 11.25 × 14.65 × 18.1 in.

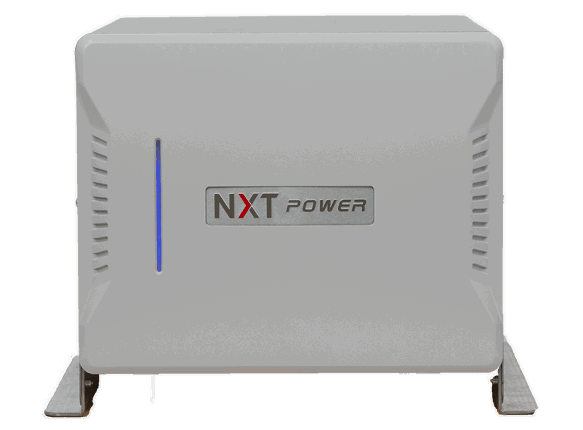

2 kVA

NPT2000 / NPT2300

2.0–2.3 kVA

Max Power2000–2300 VA
Input208 or 240 VAC
Output208, 240/120 VAC
Max Load9.6 A
Frequency60 Hz

Entry-level single-phase conditioner for smaller analytical instruments and computer-controlled equipment. Available in hardwired (H) and plug/receptacle configurations.

2.5 kVA

NPT2500 / NPT2800

2.5–2.8 kVA

Max Power2500–2800 VA
Input208 or 240 VAC
Output208, 240/120 VAC
Max Load12.0 A
Frequency60 Hz

Mid-range capacity for GC, HPLC, and other analytical instruments with moderate power requirements. Dual-voltage output supports mixed-voltage lab configurations.

3–3.8 kVA

NPT3000 / NPT3300 / NPT3500 / NPT3800

3.0–3.8 kVA

Max Power3000–3800 VA
Input208 or 240 VAC
Output208, 240/120 VAC
Max Load14.4–16.0 A
Frequency60 Hz

Popular range for mass spectrometers (LC-MS, GC-MS), ICP systems, and semiconductor process equipment. Four models cover the 3–3.8 kVA range for precise load matching.

5 kVA

NPT5000 / NPT5800

5.0–5.8 kVA

Max Power5000–5800 VA
Input208 or 240 VAC
Output208, 240/120 VAC
Max Load24.0 A
Frequency60 Hz

High-capacity conditioner for large analytical platforms, multi-detector systems, and computer-controlled equipment drawing up to 24 amps.

6–7 kVA

NPT6000-H / NPT7000-H

6.0–7.0 kVA

Max Power6000–7000 VA
Input208 or 240 VAC
Output208, 240/120 VAC
Max Load29.0 A
Frequency60 Hz

Highest capacity single-phase conditioners for large laboratory systems, multi-instrument setups, and network servers. Hardwired installation only. Handles up to 29 amps.

UPS · Online Double Conversion · 2.2–10 kVA

Integrity Max UPS Series

True online double-conversion UPS designed to power sophisticated computer loads with high inrush current and high crest factors — eliminating oversizing and reducing operating costs. Custom output receptacle panels and input line cords for faster onsite setup. Worldwide voltage and frequency options via online inverter. 3-year warranty on batteries, parts, and labor.

2.2 kVA

NPTU2200-0

2200 VA · 10 A

Max Power2200 VA
Input200–240 VAC
Output120/200/208/220/230/240
Max Load10.0 A
Frequency50/60 Hz
Weight276 lbs / 125 kg

Entry-level UPS for laboratory workstations, single analytical instruments, and smaller clinical diagnostic systems requiring battery-backed conditioned power.

3.2 kVA

NPTU3200-0

3200 VA · 14.5 A

Max Power3200 VA
Input200–240 VAC
Output120/200/208/220/230/240
Max Load14.5 A
Frequency50/60 Hz
Weight276 lbs / 125 kg

Popular choice for GC-MS, LC-MS, and other analytical instruments requiring uninterrupted conditioned power with battery backup during outages.

5.2 kVA

NPTU5200-0

5200 VA · 23.6 A

Max Power5200 VA
Input200–240 VAC
Output120/200/208/220/230/240
Max Load23.6 A
Frequency50/60 Hz
Weight276 lbs / 125 kg

Mid-range UPS for clinical diagnostics, multi-instrument analytical labs, and sophisticated computer systems with moderate inrush current demands.

8.2 kVA

NPTU8200-0

8200 VA · 37.2 A

Max Power8200 VA
Input200–240 VAC
Output120/200/208/220/230/240
Max Load37.2 A
Frequency50/60 Hz
Weight317 lbs / 144 kg

High-capacity UPS for large analytical platforms, multi-system labs, and industrial microprocessor equipment. Heavier-duty enclosure for high-demand environments.

10 kVA

NPTU10.0-0

10,000 VA · 45.4 A

Max Power10,000 VA
Input200–240 VAC
Output120/200/208/220/230/240
Max Load45.4 A
Frequency50/60 Hz
Weight317 lbs / 144 kg

Maximum capacity Integrity Max for the most demanding laboratory and industrial environments. Powers entire instrument suites with full battery backup and double-conversion power conditioning.

All Integrity Max models share:

Enclosure dimensions: 28.4 × 11.75 × 33.0 in. Online double-conversion topology. Worldwide voltage/frequency via online inverter. Unity output power factor. Custom PDU (rear panel) options. Additional battery cabinets and seismic brackets available. UL Listed and CE Marked. 3-year warranty on batteries, parts, and labor.

Why NXT Power

Isolation transformer technology

Unlike commodity battery backups, every NXT Power product incorporates a low-impedance isolation transformer — the gold standard for power conditioning that most manufacturers skip.

🛡️

Isolation Transformer

Low-impedance isolation transformer eliminates common-mode voltage, ground loops, and electrical noise that cause hardware damage and “No Trouble Found” service calls.

⚡

Surge Diversion

Built-in surge diverter blocks spikes and transients before they reach your equipment. Let-through voltage less than 10V normal mode (ANSI/IEEE C62.41).

🔇

Noise Filtering

Power line filter removes high-frequency electrical noise that degrades sensitive instrument performance, causing erratic readings and data corruption.

🔋

NXT GROUND

Patented NXT GROUND technology eliminates ground loops in networked systems that cause lock-ups, data errors, and intermittent failures.

🔄

Double Conversion (UPS)

Integrity Max UPS systems continuously convert AC to DC and back, delivering perfectly clean power regardless of input quality. Seamless battery transfer with zero switchover time.

🔧

Custom Configuration

Custom output receptacle panels and input line cords for faster onsite installation. Hardwired and plug/receptacle models available across all product lines.

Applications

Protecting critical laboratory systems

NXT Power solutions protect analytical instruments, diagnostic systems, and computing infrastructure from the full spectrum of power quality problems.

Mass Spectrometry

LC-MS, GC-MS, and ICP-MS systems require stable, clean power to maintain vacuum integrity, detector sensitivity, and data quality. Power interruptions can damage turbo pumps and ruin days-long runs.

Chromatography

GC and HPLC systems with sensitive detectors, autosampler sequences, and oven programs are vulnerable to power spikes that corrupt retention time data and damage electronics.

Clinical Diagnostics

Patient-facing diagnostic instruments in clinical labs require uninterrupted, conditioned power to maintain accreditation compliance and prevent sample loss during testing.

Spectroscopy

AAS, ICP-OES, FTIR, and UV-Vis instruments with high-voltage sources and sensitive detectors require isolation from electrical noise to achieve reliable, reproducible measurements.

Semiconductor Equipment

Process control equipment, cleanroom instrumentation, and wafer fabrication systems require power conditioners rated for continuous high-amperage operation.

Laboratory Computing

LIMS servers, data acquisition workstations, and networked instrument controllers need battery backup and surge protection to prevent data loss and system lock-ups.

Imaging Systems

MRI, CT, X-ray, and microscopy systems with high inrush currents require UPS systems that handle extreme crest factors without oversizing.

Process Control

Industrial PLC systems, SCADA networks, and automated manufacturing equipment require conditioned power to prevent unplanned shutdowns and equipment damage.

Full Comparison

Integrity Max UPS — all models

Side-by-side specifications for every Integrity Max UPS model.

Model	Max Power (VA)	Input	Output	Max Amps	Freq	Weight
NPTU2200-0	2,200	200–240	120/200/208/220/230/240	10.0	50/60	276 lbs
NPTU3200-0	3,200	200–240	120/200/208/220/230/240	14.5	50/60	276 lbs
NPTU4200-0	4,200	200–240	120/200/208/220/230/240	19.0	50/60	276 lbs
NPTU5200-0	5,200	200–240	120/200/208/220/230/240	23.6	50/60	276 lbs
NPTU6000-0	6,000	200–240	120/200/208/220/230/240	27.2	50/60	276 lbs
NPTU8200-0 HIGH CAP	8,200	200–240	120/200/208/220/230/240	37.2	50/60	317 lbs
NPTU10.0-0 HIGH CAP	10,000	200–240	120/200/208/220/230/240	45.4	50/60	317 lbs
